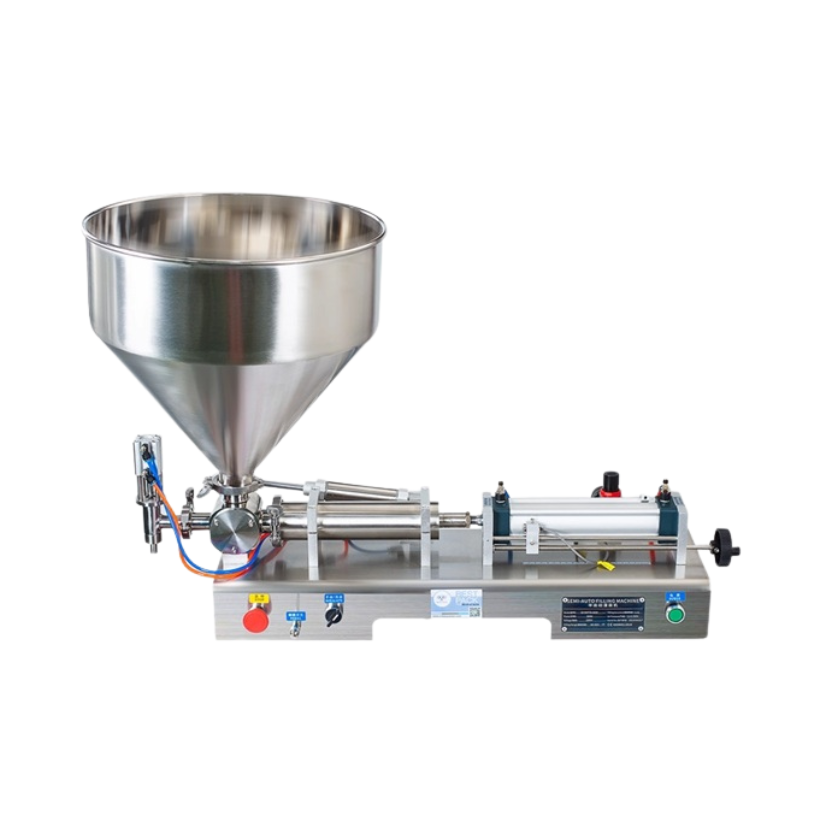

MATAF G-SERIES SINGLE HEAD CYLINDER FILLING MACHINE 5-100ML/50-500ML/500-3000ML
The G Series Pneumatic Liquid Filling Machines are designed for precise filling of liquid and paste materials. They feature stable performance, simple operation, and high efficiency. Suitable for industries such as food, cosmetics, chemicals, and pharmaceuticals, the machines can be configured with different filling heads and ranges to meet diverse production needs.
Specifications
|
Model |
G1WGD |
G2WGD |
G4WGD |
|
Power Supply |
220/110V 50/60Hz |
220/110V 50/60Hz |
220/110V 50/60Hz |
|
Air Pressure |
0.6–0.8 MPa |
0.6–0.8 MPa |
0.6–0.8 MPa |
|
Output |
0–40 bottles/min |
0–80 bottles/min |
0–160 bottles/min |
|
Filling Range |
5–100 ml, 10–300 ml |
50–500 ml, 100–1000 ml |
500–3000 ml, 1000–5000 ml |
|
Power |
50 W |
100 W |
200 W |
|
Hopper Capacity |
30 L |
50 L |
100 L |
|
Number of Filling Heads |
1 |
2 |
4 |
|
Machine Dimensions |
1310 × 380 × 380 mm |
1310 × 550 × 380 mm |
1310 × 1010 × 420 mm |
|
Weight |
35 kg |
55 kg |
90 kg |
